Application method: The infeed station automatically guides the goods to the carrier; the driving mechanism drives multiple carriers connected in series on a closed loop to walk along the loop; the scanning mechanism scans to determine the final destination; when the destination is reached, the belt conveyor on the carrier unloads the goods to the corresponding chute.

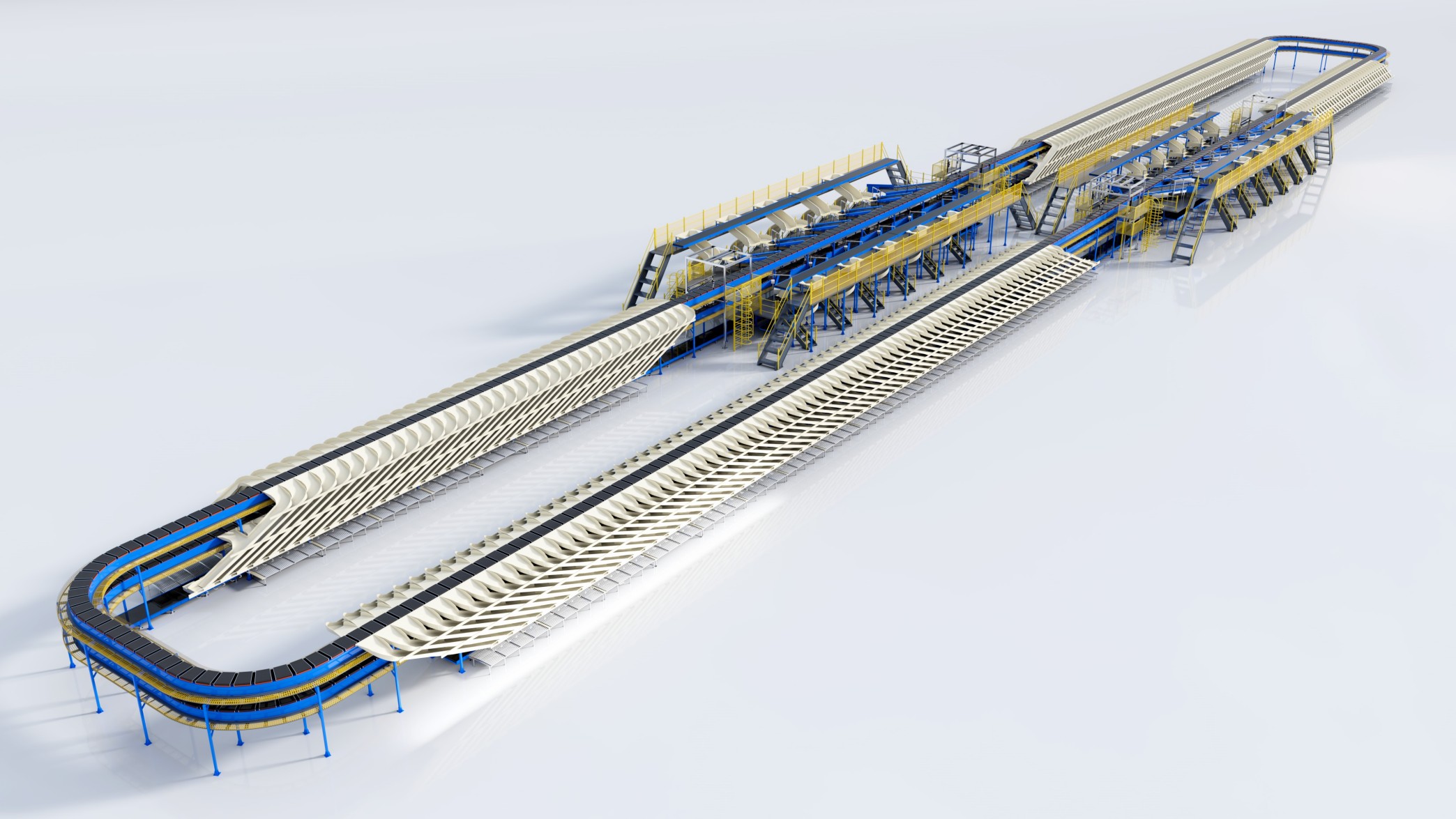

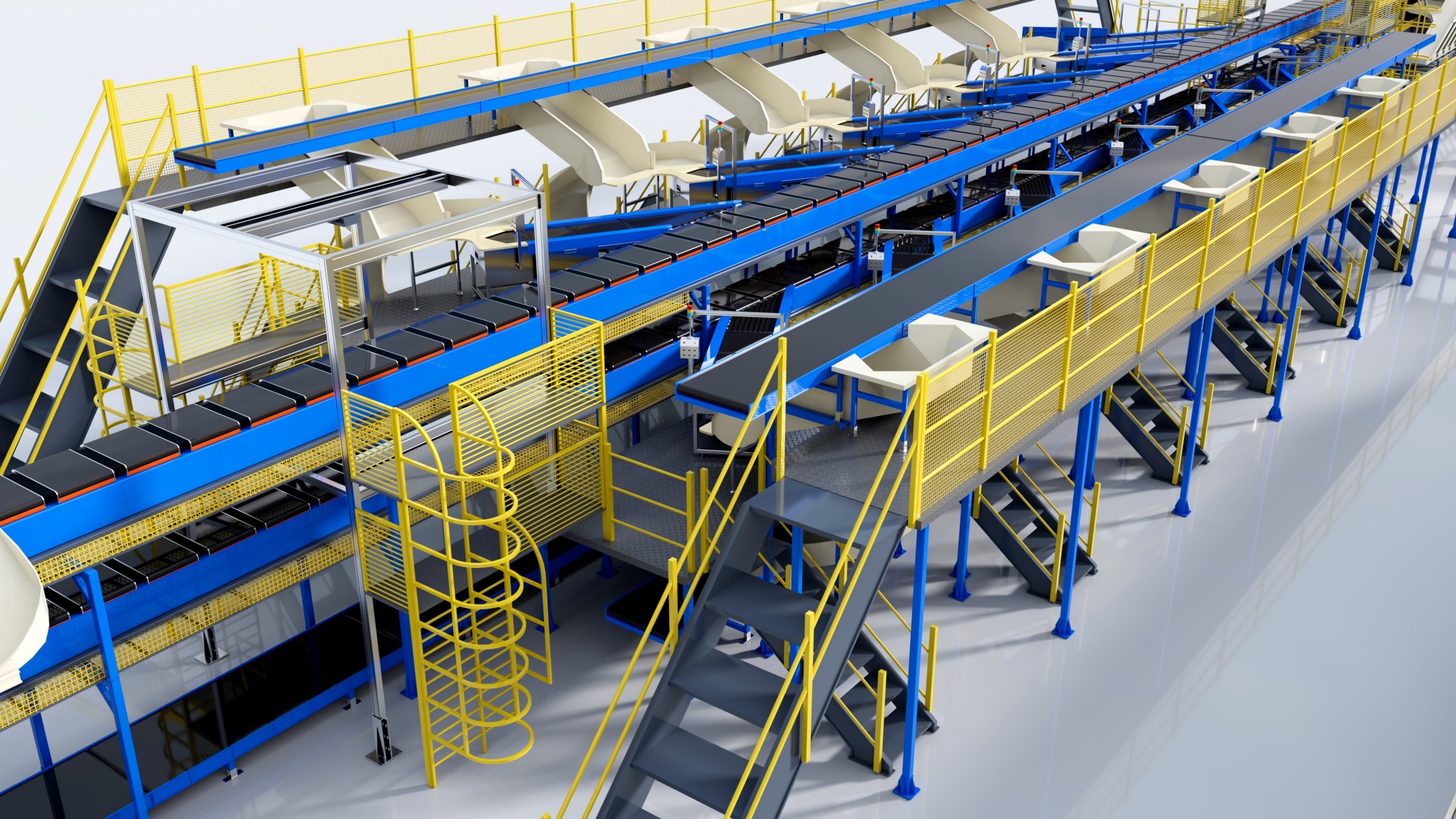

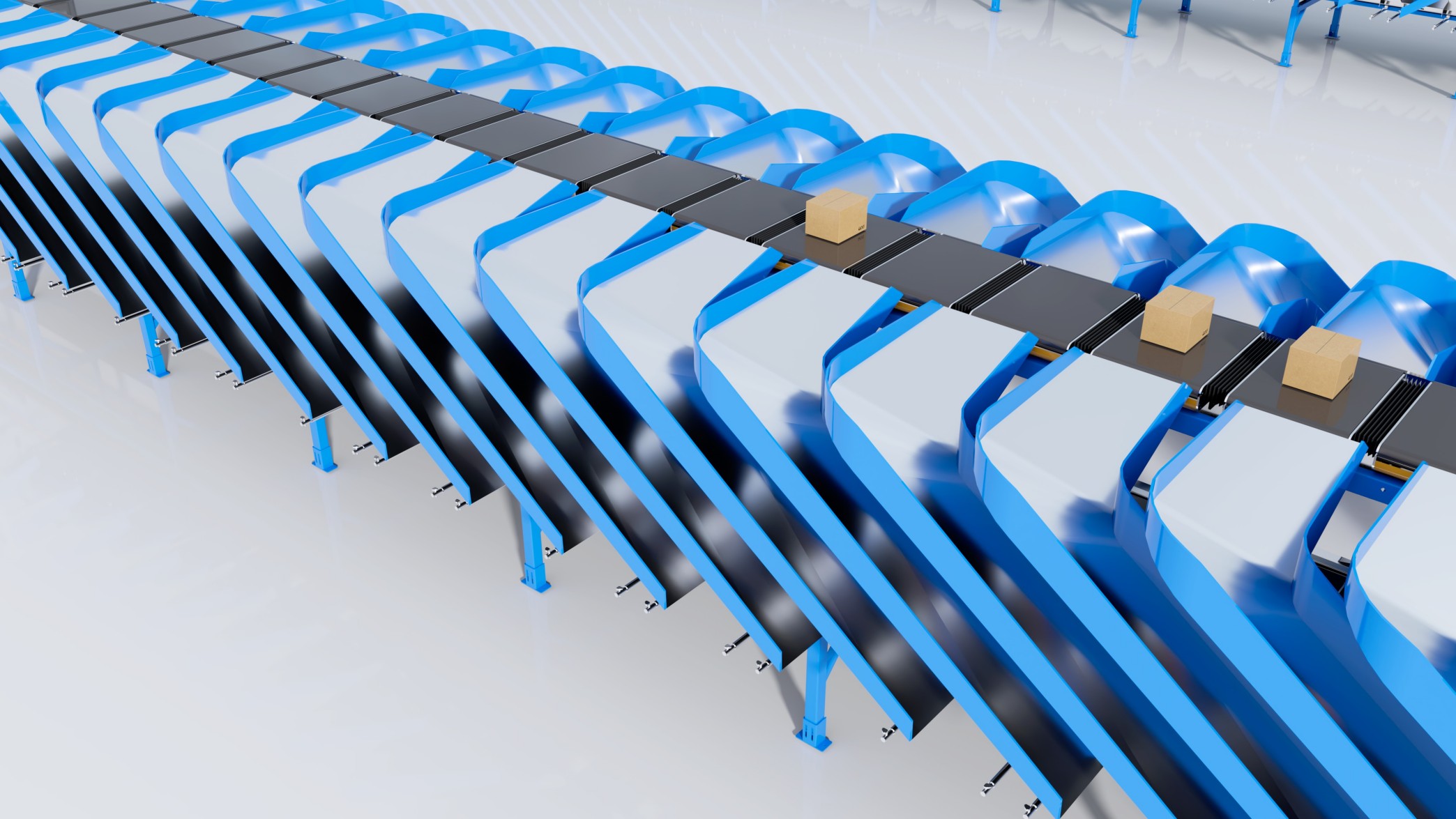

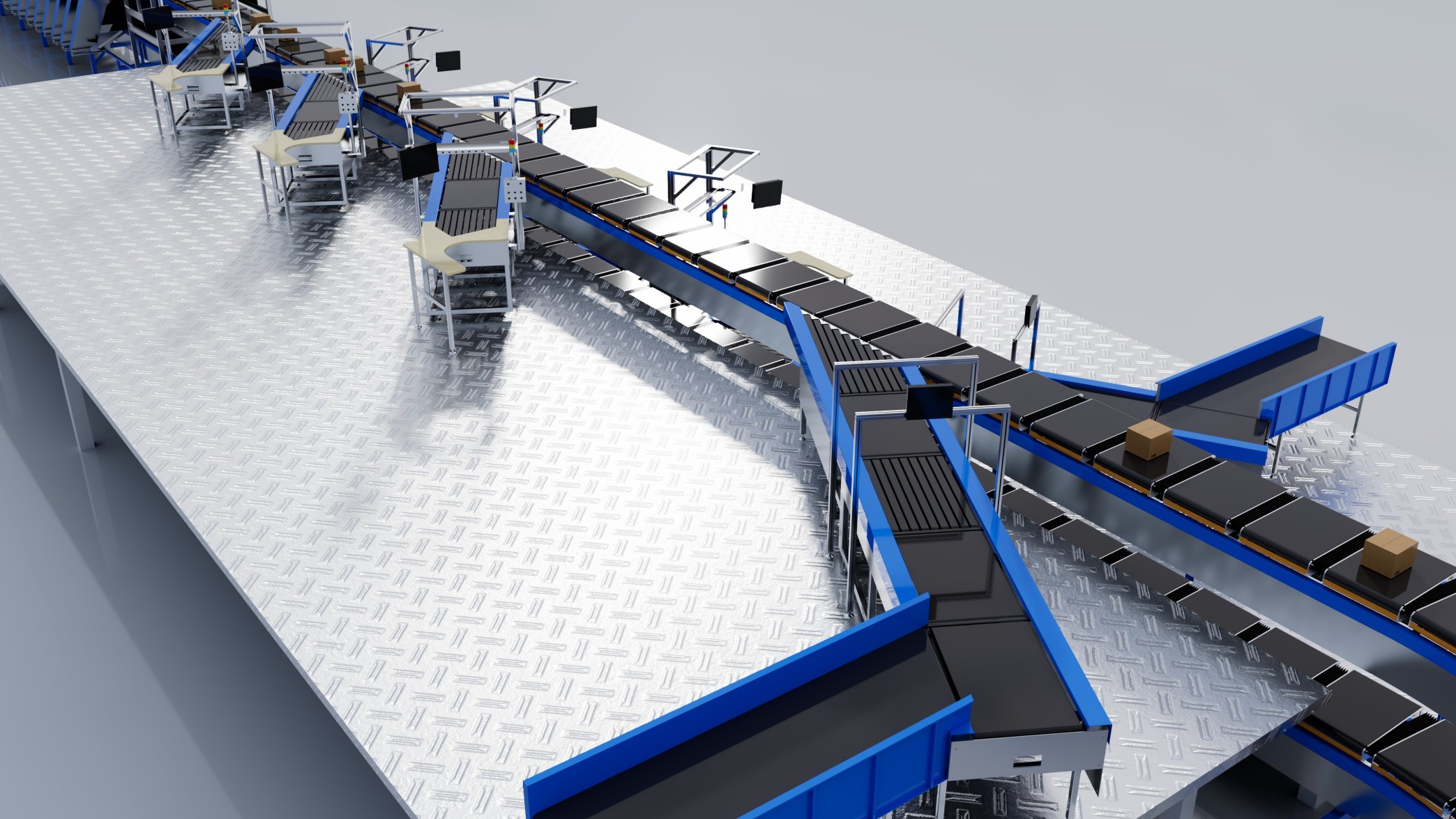

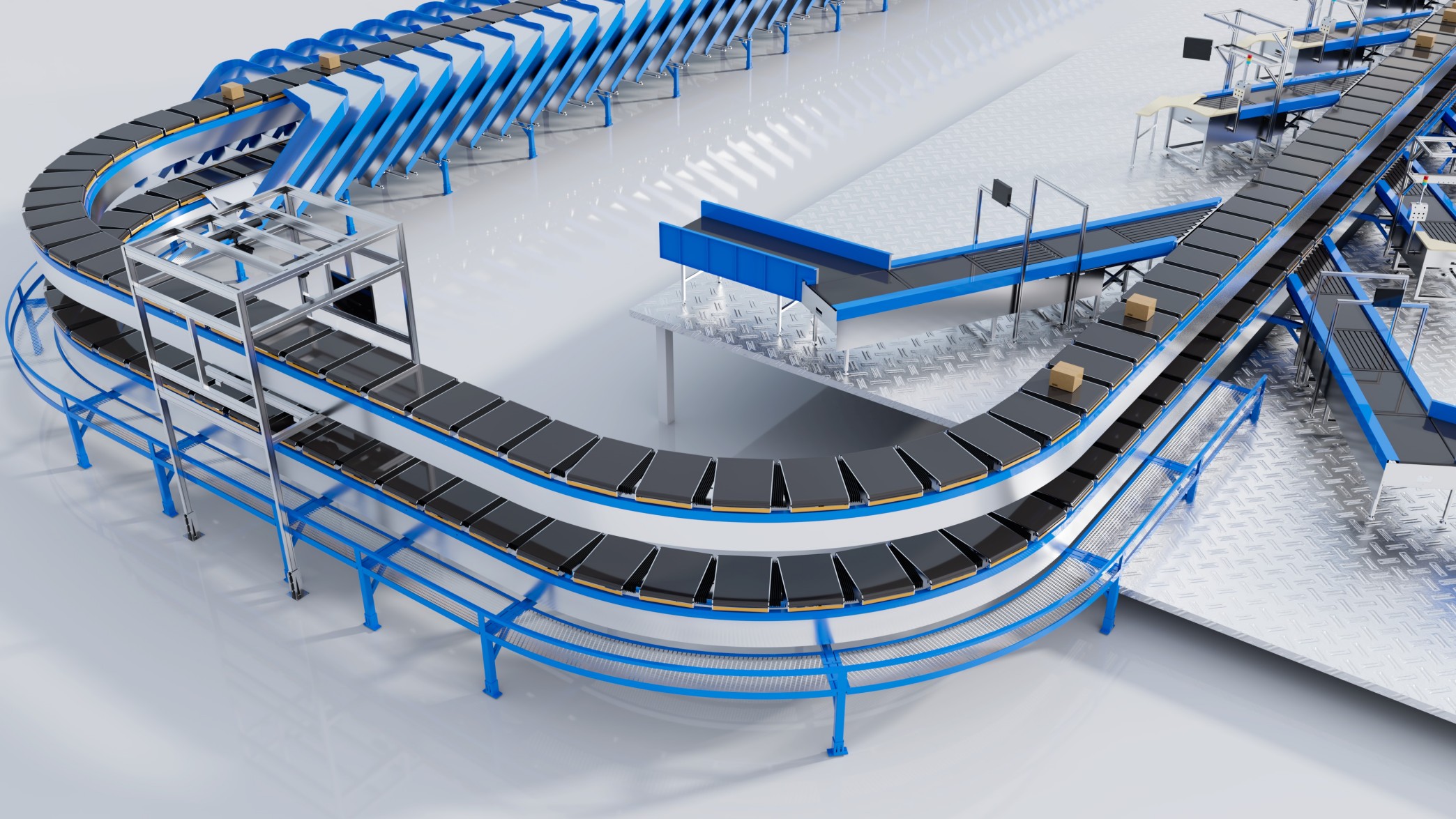

Cross-belt sorter
Description
Descripition
Specification
Solutions
Case
Application Method:
Application method: The infeed station automatically guides the goods to the carrier; the driving mechanism drives multiple carriers connected in series on a closed loop to walk along the loop; the scanning mechanism scans to determine the final destination; when the destination is reached, the belt conveyor on the carrier unloads the goods to the corresponding chute.
| Specification | |
Carrier size | Min: 630*330mm Max: 1500*550mm |
Item size | Min: 100*50*2mm Max: 150*80*800mm |
Item weight | Min: 20g Max: 80kg |
Efficiency | Up to 24000 p/hour |
Tilt angle | Up to 15° |
Sorter speed | Up to 3m/sec |
E-commerce Logistics System
Since entering the Chinese market in the 1990s through its main air express and domestic private express processing system business, PGSL has acquired FedEx Beijing Port, DHL Hong Kong Hub, TNT (East China, North China), SF (SF Express National Main Distribution Center), YUNDA (Yunda North China, East China, South China) and other domestic express companies, various distribution center projects have become the inevitable choice for the rapid development of many logistics express companies.
Wuhan Shentong double cross belt
Project overview：
Length of conveying line ：4.39 KM
Number of automatic lines ： 19
Steel frame structure ：14,800 sqm
Commencement date ：2021.10.24
Delivery date ：2022.3.3
Capacity：
Medium items：36,000 p/h；
Small items：10,000 p/h.

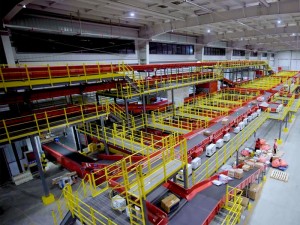

Wuhan JD
JD customized warehouse (provided with matrix platform）：
Project Overview：
Length of conveying line：6.65KM
Number of automatic lines： 22 lines
Steel frame structure：14,000 sqm
Commencement date：2021.09.25
Delivery date：2022.3.1
Capacity：
medium items：55,000p/h； Small items：40,000p/h
