Application method:Item separation equipment is applied to automatic sorting system to realize automatic item separation of mixed parcels, replacing manual item separation.

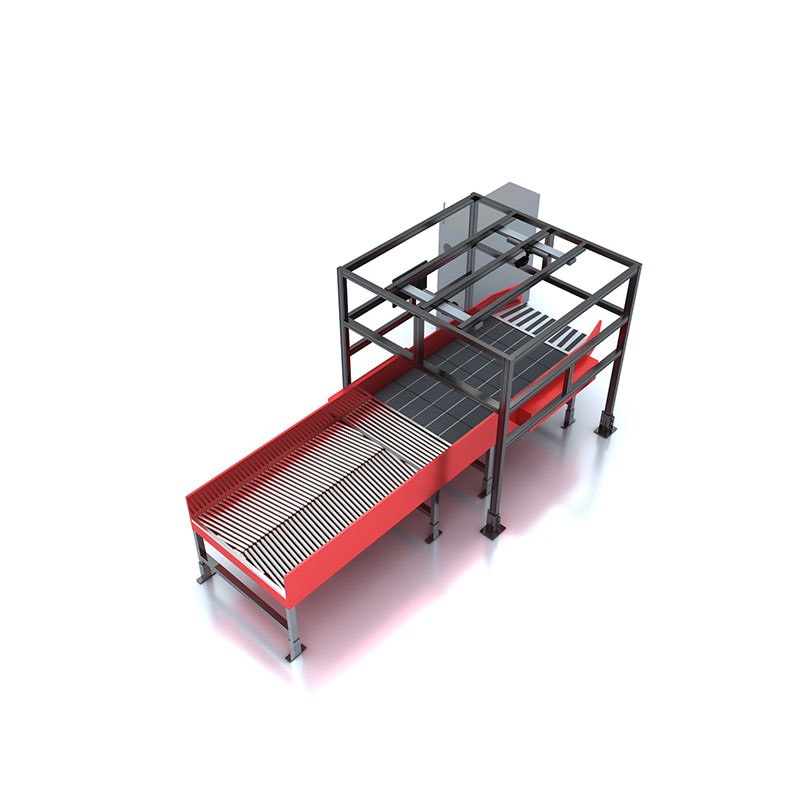

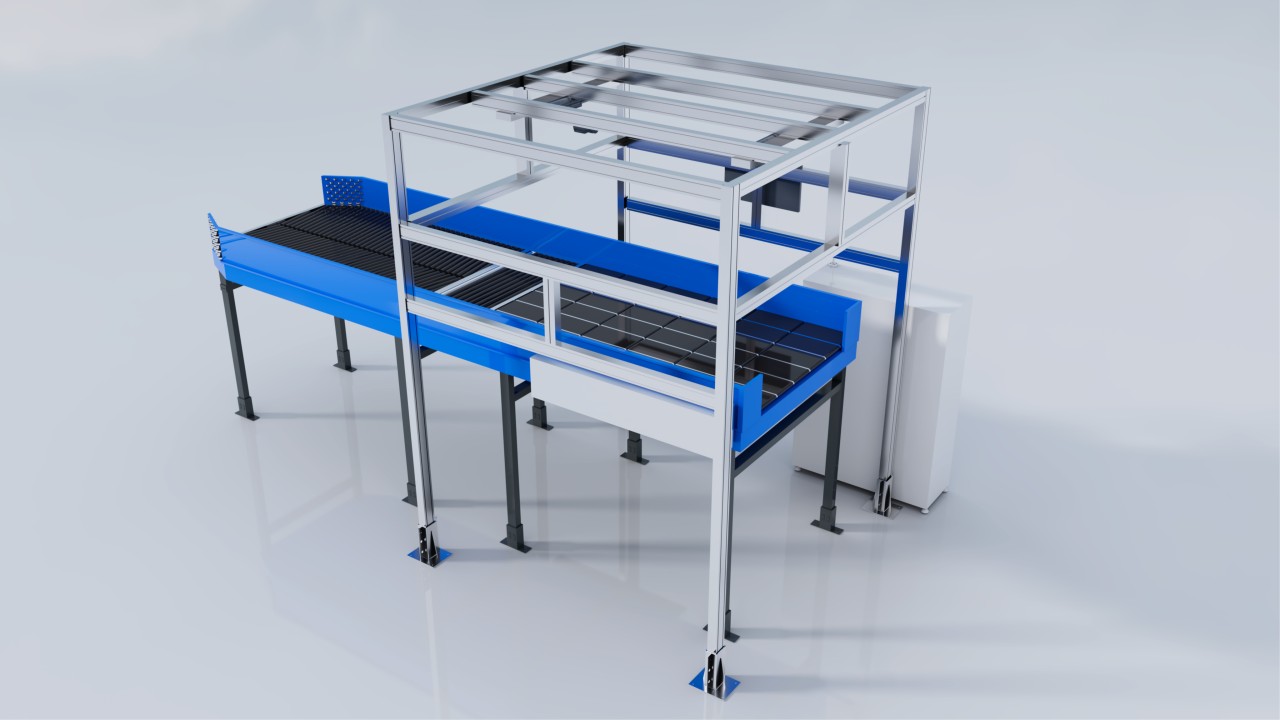

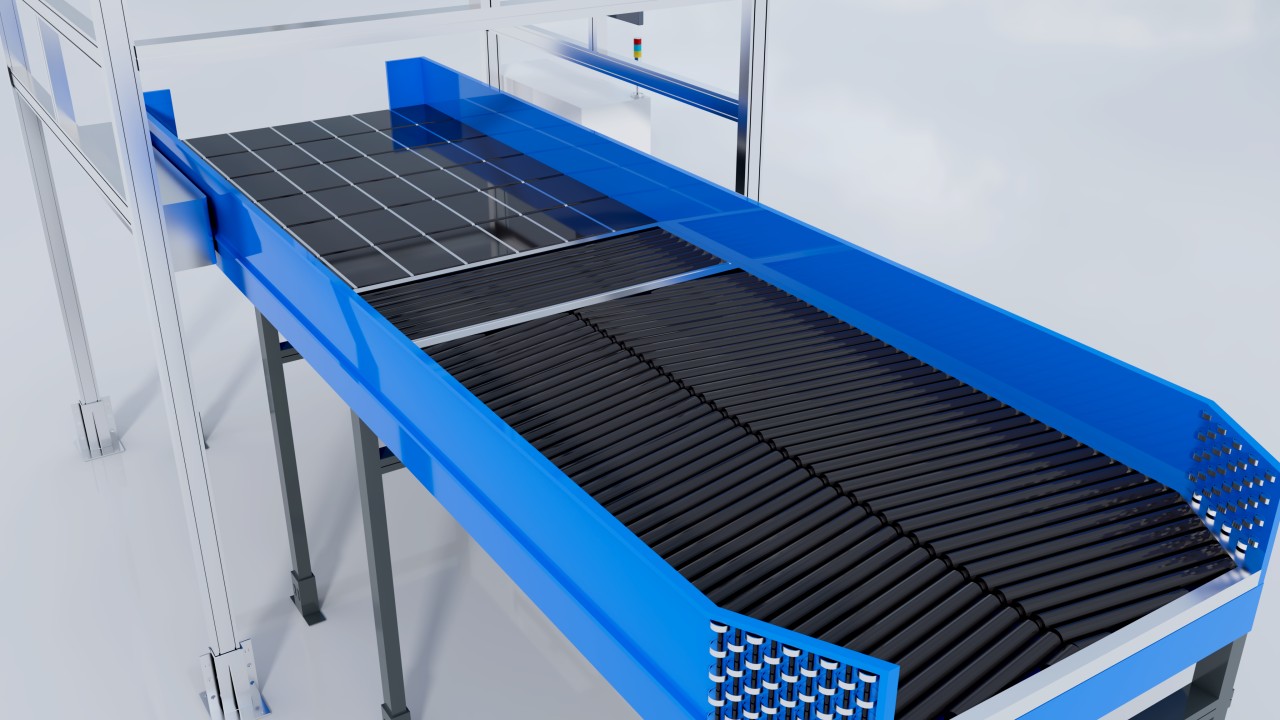

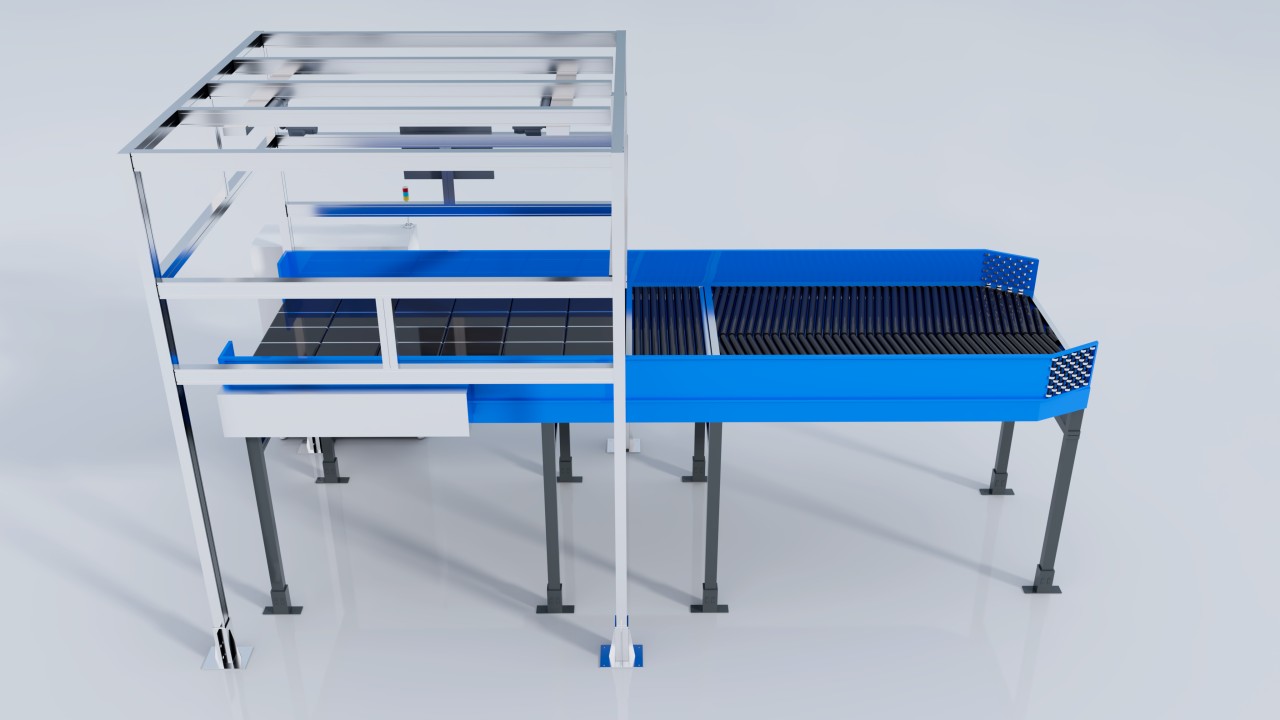

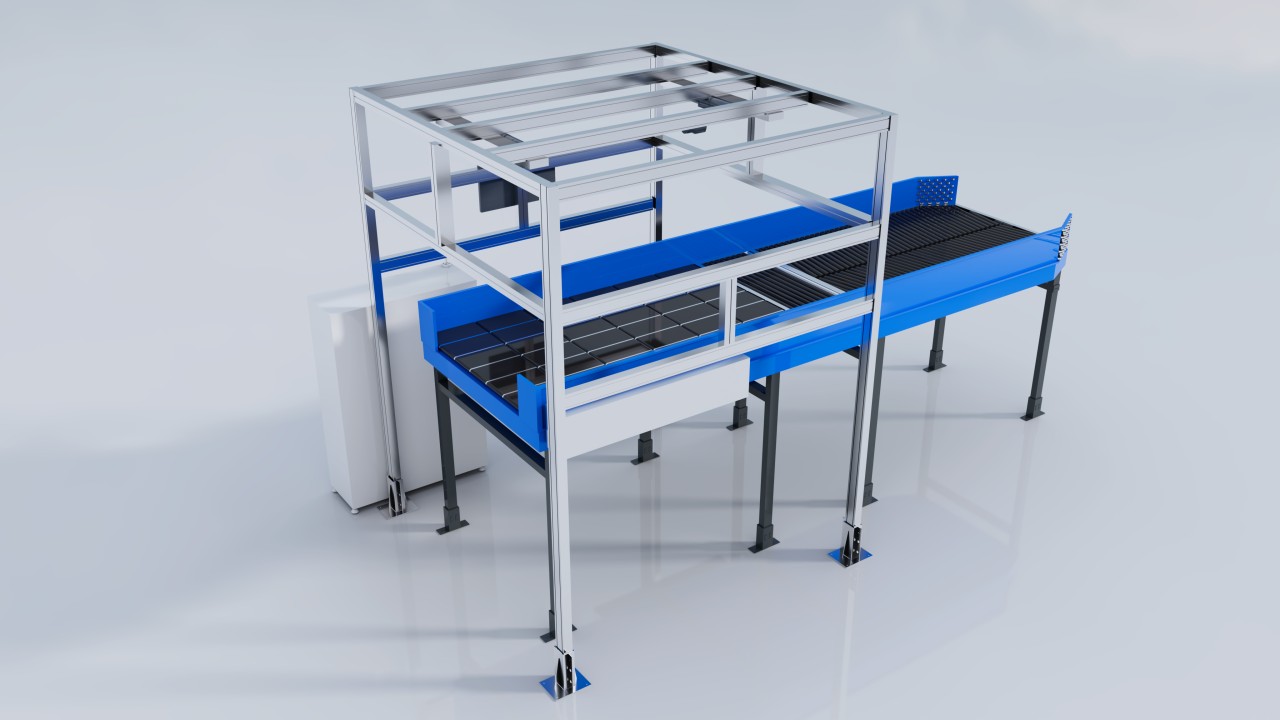

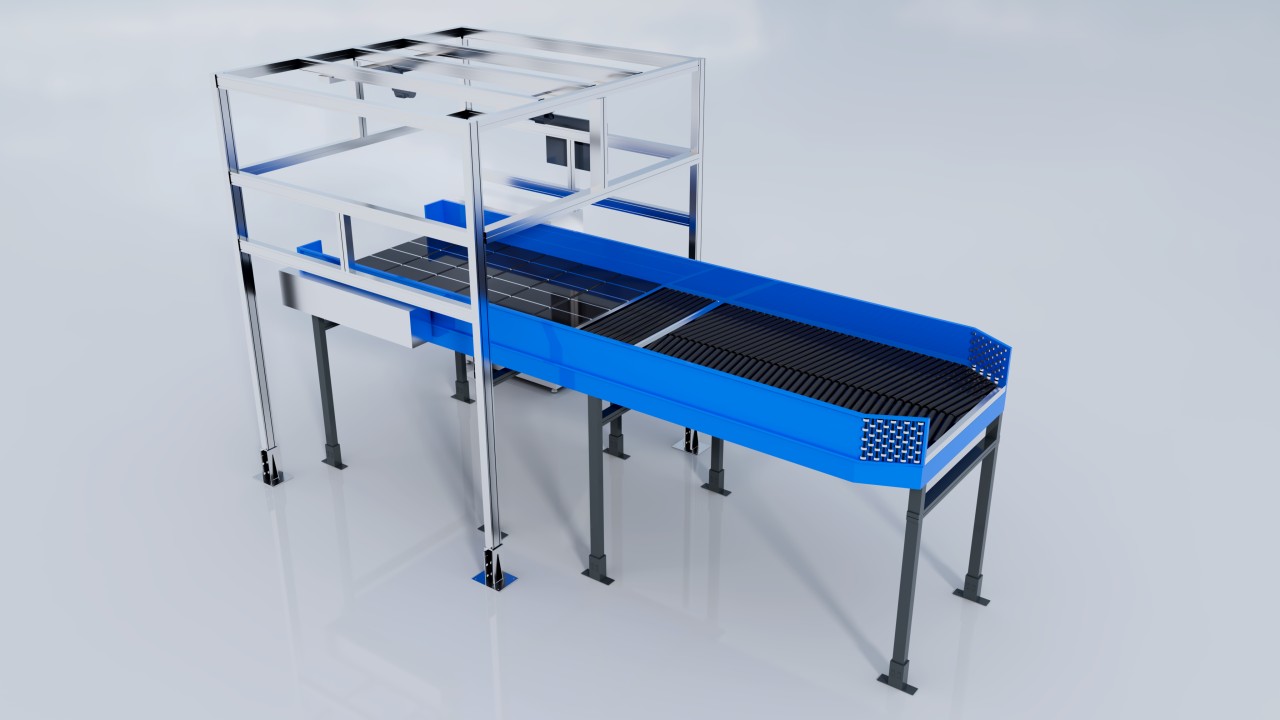

Visual single-piece separation device
Description
Descripition
Specification
Solutions
Case
Application Method:
Item separation equipment is applied to automatic sorting system to realize automatic item separation of mixed parcels, replacing manual item separation.
| Specification | |
Equipment size | Total length of the equipment system ≤9600mm； Length of item singulator + center device ≤6000mm |
Efficiency | High speed mode：6000 p/hour； Low speed mode：4000 p/hour； |
Singulation rate | With test items ≥99%； With real items ≥98% |
Equipment noise | 72dB |
Item size | Min：160×80×15(mm) Max：1000×800×800(mm |
Item weight | 0.3-60kg |
E-commerce Logistics System
Since entering the Chinese market in the 1990s through its main air express and domestic private express processing system business, PGSL has acquired FedEx Beijing Port, DHL Hong Kong Hub, TNT (East China, North China), SF (SF Express National Main Distribution Center), YUNDA (Yunda North China, East China, South China) and other domestic express companies, various distribution center projects have become the inevitable choice for the rapid development of many logistics express companies.
Wuhan Shentong double cross belt
-Double ring sorting system
-The loop is 400 meters in length
-It handles 48,000 packages per hour
Wuhan JD
JD customized warehouse (provided with matrix platform）：
Project Overview：
Length of conveying line：6.65KM
Number of automatic lines： 22 lines
Steel frame structure：14,000 sqm
Commencement date：2021.09.25
Delivery date：2022.3.1
Capacity：
medium items：55,000p/h； Small items：40,000p/h
