Application method: The carrier lurks under, uses the lifting rod to hook the trolley, selects the station to stop, and the AGV can realize the round-trip transportation according to two or more stations.
AGV
Description
Descripition
Specification
Solutions
Case

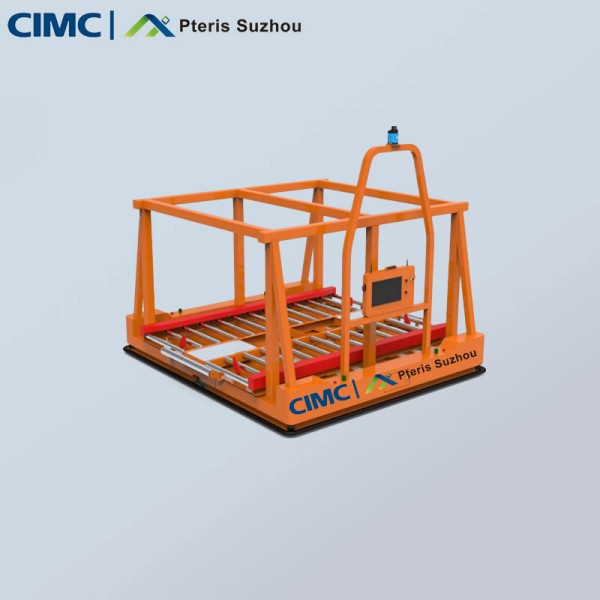

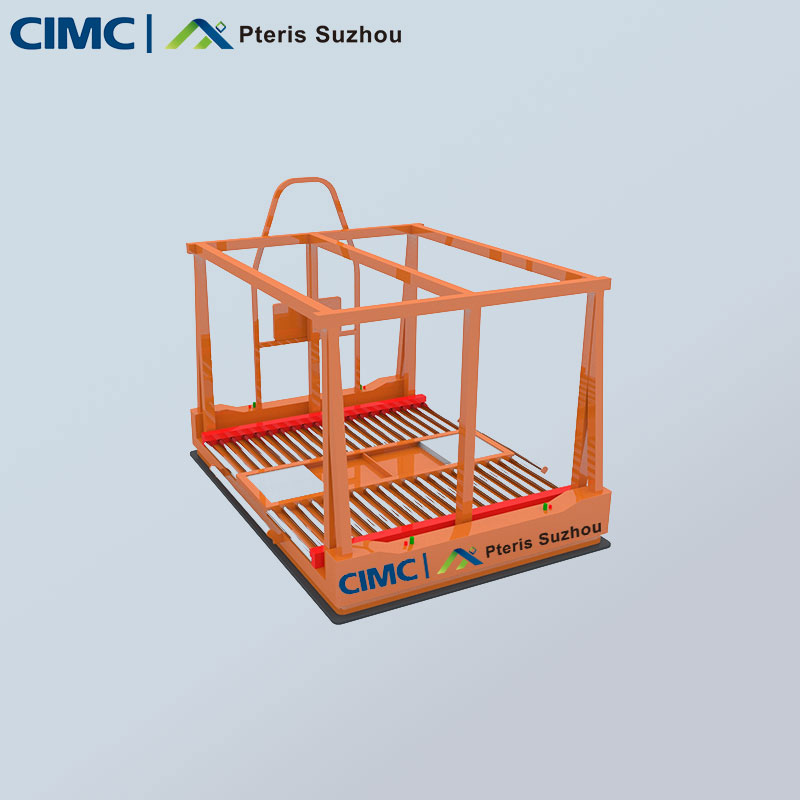

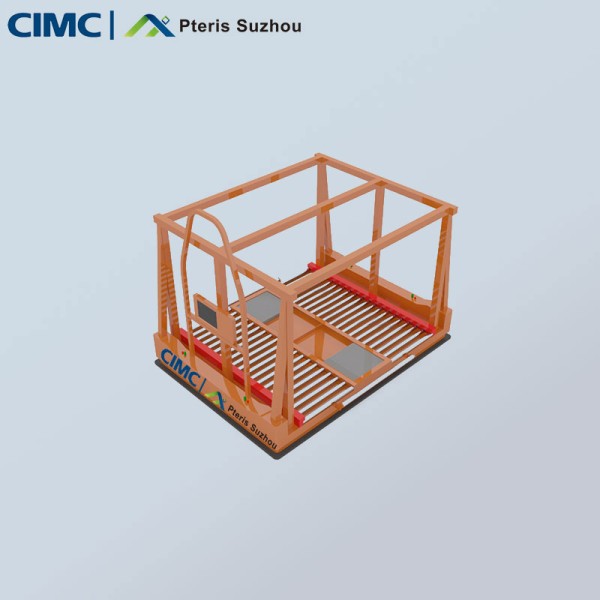

Application Method:
The carrier lurks under, uses the lifting rod to hook the trolley, selects the station to stop, and the AGV can realize the round-trip transportation according to two or more stations.
| AGV Specification | |
| Size（mm） | 4000*4209*3634 |
| Docking surface height (mm) | 508 |
| Maximum load（kg） | 3000 |
| Turning radius（mm） | 2516 |
| Positioning accuracy（mm） | ±4 |
| Travel speed (full/empty）（m/s） | 1.5/1.5 |
| Navigation radar model | SICK NAV350 |
| Drive mode | Double steering wheel structure |
| Moving motor power | 2.5kw*2 |
| Contactless sensor | Safety protection lidar |
| Safety radar model | SICK microScan3 |
| Number of safety radar | 4 |
| Radar protection radius (mm) | 4000 |
Airport Logistics System
With more than 30 years of experience in aviation equipment manufacturing, the automatic baggage handling system is independently developed by combining the latest technologies globally. The system includes check-in, collection, conveying, identification, sorting, temporary storage, and retrieval of equipment. Through the integration of electromechanical, control, coding, network, and information systems, it can meet the full set of processes such as departure, arrival, and transit temporary storage of airport luggage. PGL strives to be the best in its core skills, that is, to create value for customers by providing engineering solutions of the highest quality and highest standards.
Airport Cargo Terminal Industry – Beijing Daxing Airport
The project dedicated to the 70th anniversary of the founding of the People’s Republic of China in 2019 has a designed cargo and mail throughput of 600,000 tons per year.
It covers an area of 77,000 square meters, including the No. 1 warehouse of the International Cargo Terminal, the No. 2 warehouse of the International Cargo Terminal, the No. 3 warehouse of the International Cargo Terminal, and the domestic cargo terminal.
Airport Cargo Terminal Industry——Pudong Eastern Airlines Air Cargo Depot
The largest single freight station in Shanghai, with a designed cargo and mail throughput of 1.2 million tons per year, covering an area of 85,000 square meters.
