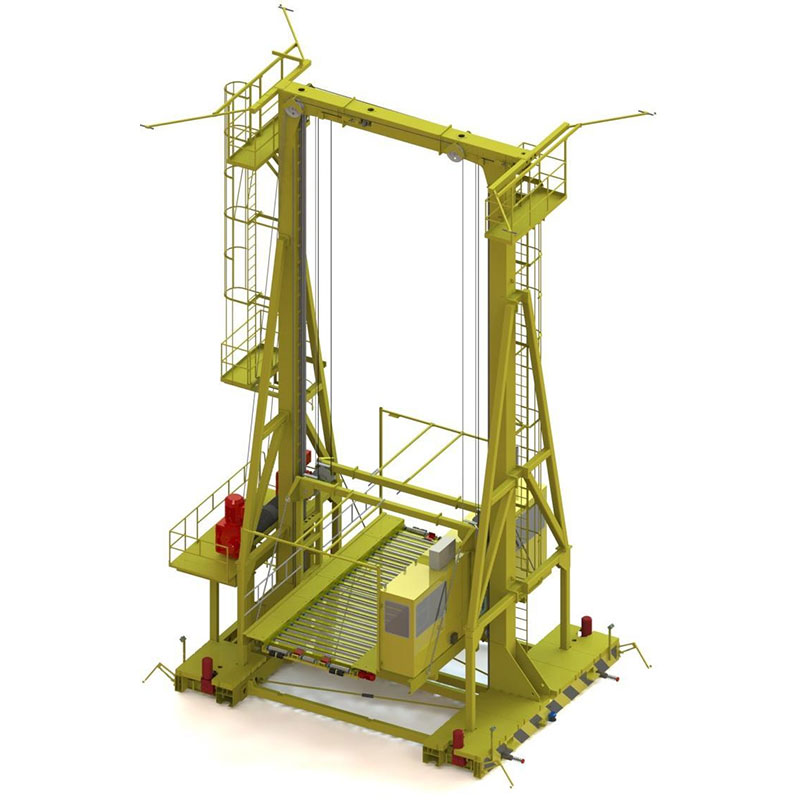

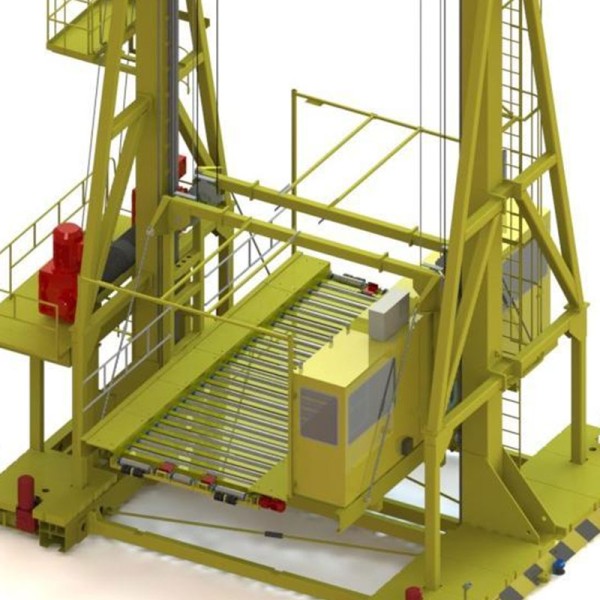

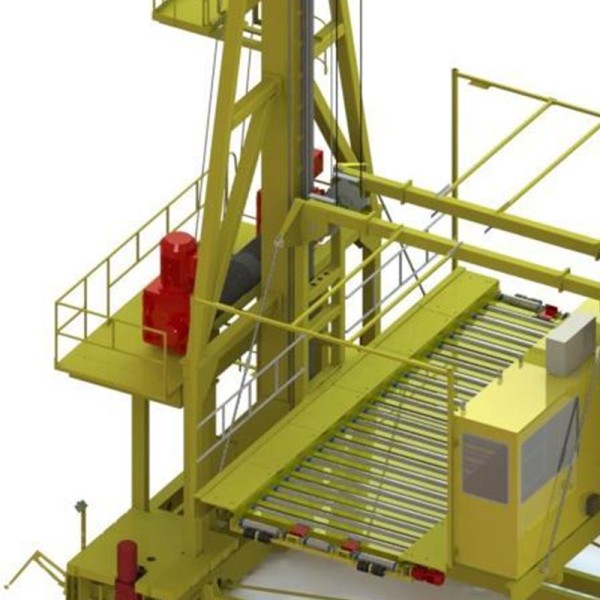

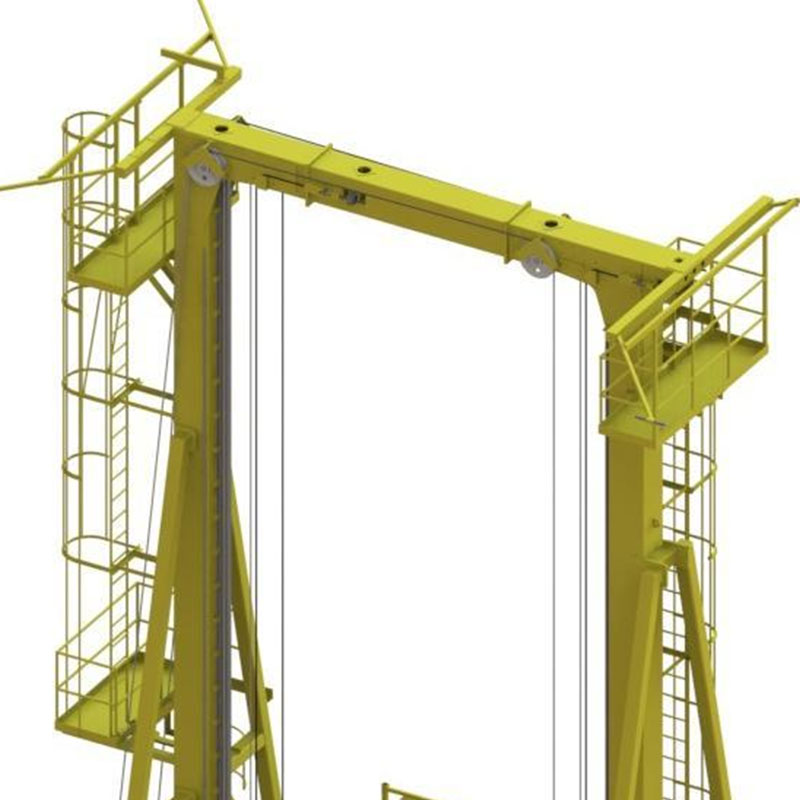

Application method: The running mechanism of ETV adopts four-wheel drive technology, the vertical lift adopts dual motor (2x55kW) drive technology, and multiple friction wheels are used in groups to complete the friction extraction drive.
ETV
Description
Descripition
Specification
Solutions
Case
Application Method:
The running mechanism of ETV adopts four-wheel drive technology, the vertical lift adopts dual motor (2x55kW) drive technology, and multiple friction wheels are used in groups to complete the friction extraction drive.
| AGV Specification | |
Lifting Capacity | 13.6t |
Maximum height for carrying ULD | 3.00m |
ULD conveying direction | vertical（LO） |
The lowest working position of the cargo platform | +0.508m |
The highest working position of the cargo platform | ≥12808m |
The number of lifting levels | 5 levels, 5 stops |
Horizontal running speed | ≥120m/min (rated speed)，0～max (CVT) |
Lifting speed | ≥20m/min (rated speed)，0～max (CVT) |
Conveyor roller speed | 18m/min |
| Contactless sensor | Safety protection lidar |
| Safety radar model | SICK microScan3 |
| Number of safety radar | 4 |
| Radar protection radius (mm) | 4000 |
Airport Logistics System
With more than 30 years’ experience in aviation equipment manufacturing, and combining the latest global technologies, the automatic baggage handling system is developed independently. The system includes the equipment of check-in, collection, transportation, identification, sortation, temporary storage, reclaim and etc. By integration of electromechanical, control, coding, network and information systems, it can meet the complete processes of baggage departure, arrival, transit storage and etc. PGSL strives to be the best in its core skills, that is, to create value for customers by providing engineering solutions of the highest quality and highest standards.
Airport Cargo Terminal Industry – Beijing Daxing Airport
The project dedicated to the 70th anniversary of the founding of the People’s Republic of China in 2019 has a designed cargo and mail throughput of 600,000 tons per year.
It covers an area of 77,000 square meters, including the No. 1 warehouse of the International Cargo Terminal, the No. 2 warehouse of the International Cargo Terminal, the No. 3 warehouse of the International Cargo Terminal, and the domestic cargo terminal.
Airport Cargo Terminal Industry——Pudong Eastern Airlines Air Cargo Depot
The largest single freight station in Shanghai, with a designed cargo and mail throughput of 1.2 million tons per year, covering an area of 85,000 square meters.
