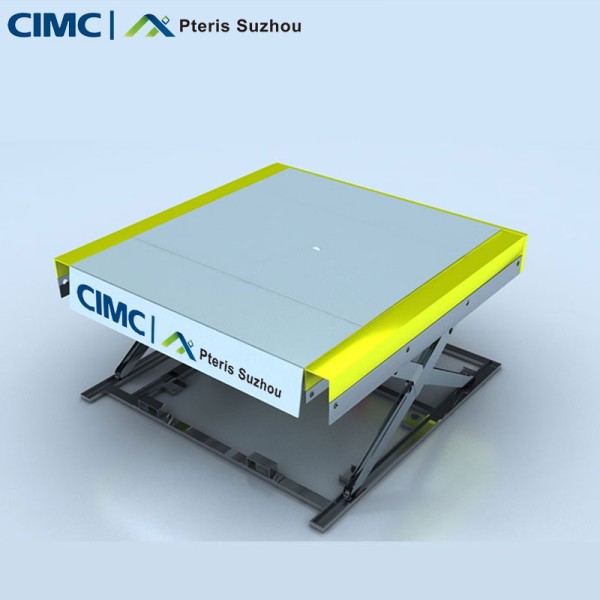

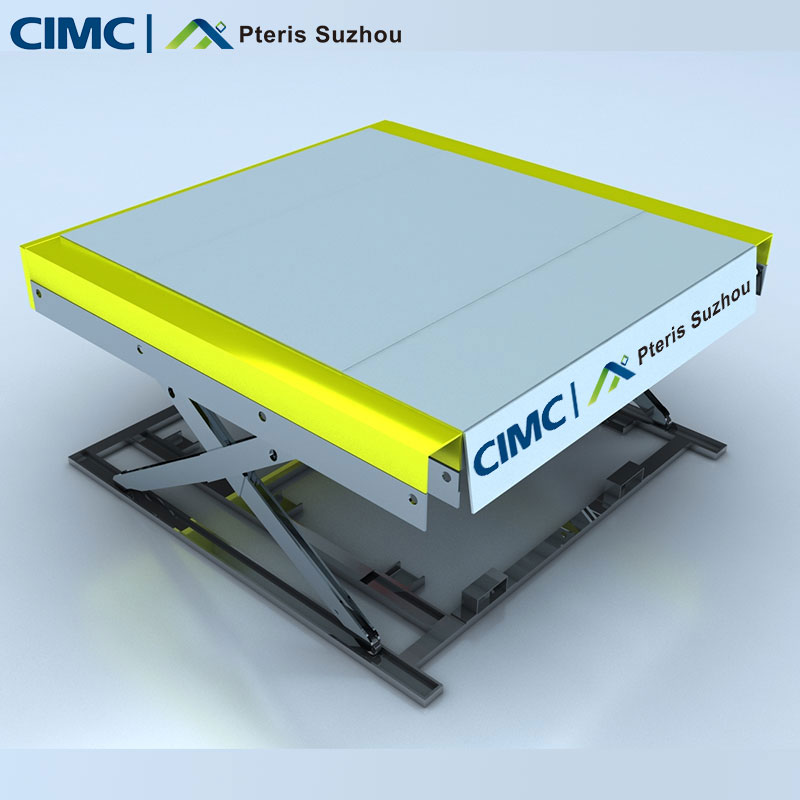

Multi-functional Boarding Bridge (Hydraulic Lift Platform)

Application method: Good lifting stability and wide application range of cargo lifting equipment are mainly used for cargo transportation between production line with height differences;.

Description

Descripition

Specification

Solutions

Case

Application Method:

Good lifting stability and wide application range of cargo lifting equipment are mainly used for cargo transportation between production line with height differences.

Specification
Equipment size 2300×2000
Rated load 2t
Bearing range 2200*1730mm
Bridge length 390mm
Lifting range -200~+400mm, duration:10 sec up, 10 sec down
Tilt range -150mm~+250mm, duration: 8 sec tilt up, 6 sec tilt down
Folding range -90°~75°, duration: 10 sec folding, 10 sec stretching
Reserved pits (L)3000mm,(W)2040mm,(H)600mm
Power supply 380v
Hydraulic power 4KW

Express Delivery System Integration

Through the actual situation of the express industry in terms of more stringent requirements for the inbound, unloading, receiving, scanning, X-ray machine security inspection, weighing, unpacking, sorting, packaging, and outbound fast loading of goods, PGSL, With the experience over 150 airport baggage conveying system projects and air cargo terminal projects around the world, has carried out in-depth cooperation with well-known international and domestic express companies. At the same time, according to the actual situation of technology, labor force and national policies in the domestic express delivery industry, it provides automatic and semi-automatic express delivery solutions of different standards for the express delivery industry, and accelerates the transformation and upgrading of customers in the express delivery industry.

Cainiao Cixi Sorting Project

-2000 meters long conveying system

-Full cycle of feeding, packing, transferring, and sorting are all included One inbound zone with 6 stations, a speed of 2.2m/s, and 10,560 PPH in actual use.

Shopee Dongguan Combined Warehouse

The equipment has reliable safety protection measures, the layout of the field equipment is reasonable, and the cross-beam connection between adjacent equipment is added to ensure the overall stability of the equipment. According to the characteristic of the product, the anti-pinch design is implemented.

Get A Quote

If you are interested in the sliding shoe sorter and would like more information or to request a quote, please get in touch with our company directly, and we will assist you as soon as possible.
