Application method: It drives along the direction of vertical or horizontal orbit on the cross -track, and at any specified cargo position at the warehouse to achieve optimal space usage ratio.

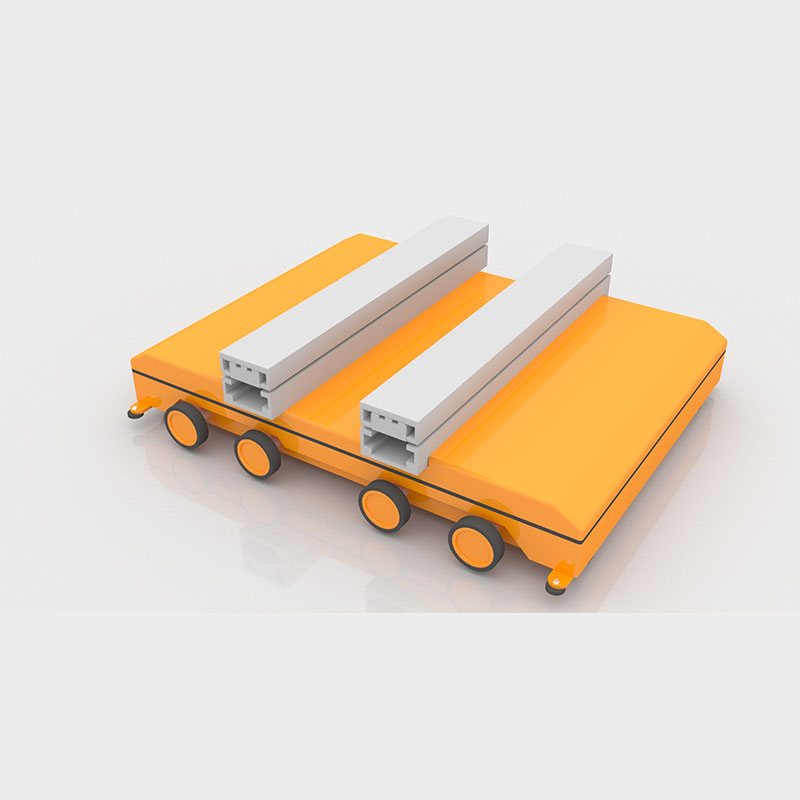

Four-way shuttle system
Description
Descripition
Specification
Solutions
Case
Application Method:
It drives along the direction of vertical or horizontal orbit on the cross -track, and at any specified cargo position at the warehouse to achieve optimal space usage ratio.
| Specification | |
Bearing weight and moving speed | Max 1.5 T1.0 m/s |
Max 1.2 T1.2 m/s | |
Max 0.6 T1.5 m/s | |
Pallet size | L2000*W2000 |
Ambient temperature | 0~50℃ |
Power supply | 48V/40AH |
Battery capacity | Lithium iron phosphate charge 2~3h endurance 6~8h |
Equipment weight | 450kg |
Warehouse Automation System Solutions
With the rapid development of the enterprise, the variety of products, and the accelerated turnover of material storage, the logistics and storage space of the enterprise is beginning to be tight. Therefore, various material storage projects have become an inevitable measure for enterprises to improve efficiency and core competitiveness. PGSL merged into the airport logistics sector of CIMC Group through reverse acquisition, integrated CIMC Group’s warehousing project resources and products, and provided customers with a package of logistics and warehousing solutions.
Yulong Petrochemical
-The total operating time reaches 144 hours under normal operating conditions.
-At least 72 hours of warehousing peak test is included.
-The equipment failure rate is 5 % and the system error rate is 5 %.
-The project includes WMS system, intelligent warehouse control system, intelligent warehouse dispatching system, etc.
Foxconn
This project consists of 6 subsystems: AS/RS Unit-load warehouse racking system, Mini-load warehouse racking system, electronic label seeding racking system, conveying system, electrical control system ECS, and dispatching system WCS. According to customer requirements, a number of customized software systems have been developed to meet the high standards of the electronics industry.
