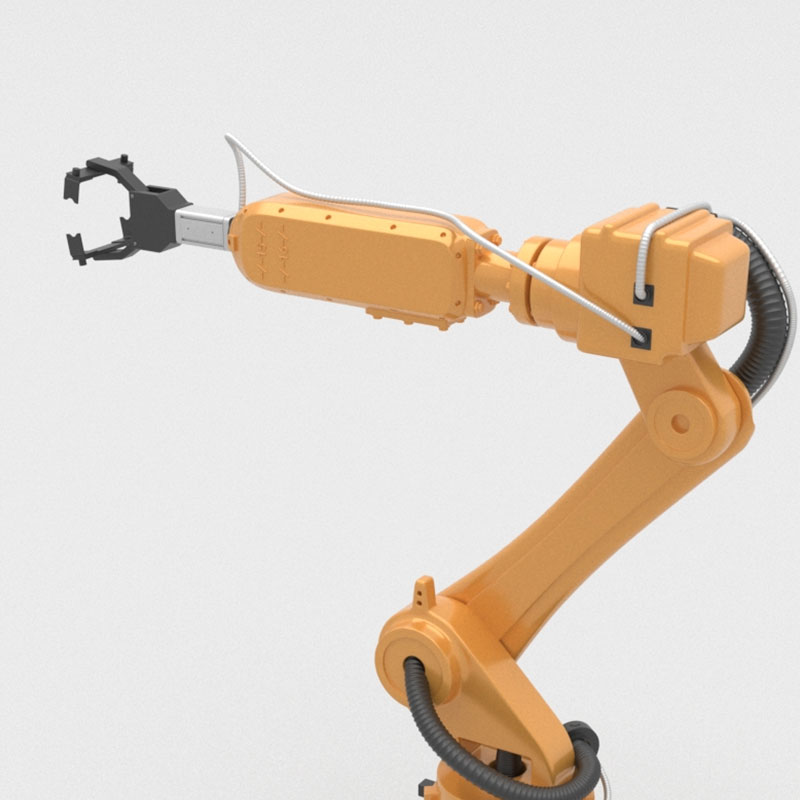

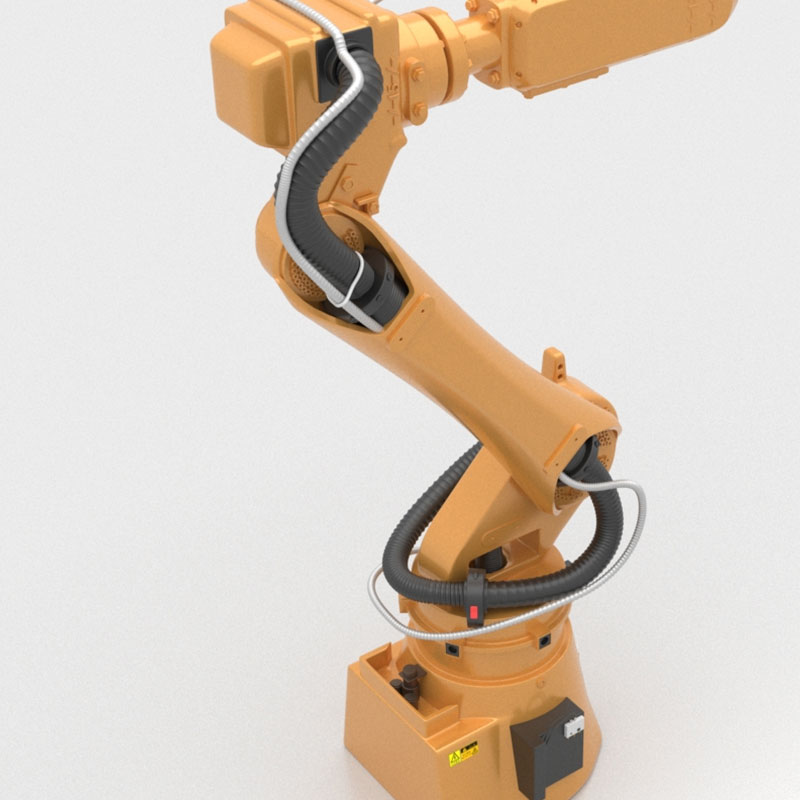

Robot of (DE)palletizing system

Robot of (DE)palletizing system

Application method: run along the track in the laneway of the high-rise shelf warehouse, access the unit goods to the cargo compartment, and complete the in and out of the warehouse.

Description

Descripition

Specification

Solutions

Case

Application Method:

 run along the track in the laneway of the high-rise shelf warehouse, access the unit goods to the cargo compartment, and complete the in and out of the warehouse.

Specification

FANUC RobotM-410iC

/110



/185

/315

/500



FANUC Robat M-410iB



/140H



/700

Number of control axes

4

5



4



Wrist handleable mass

110kg

140kg

185kg

315kg

500kg

700kg

Range of motion(X,Y)

2403mm,2238mm

2850mm,3546mm

3143mm,2958mm



Repeatability accuracy

±0.05mm

Mechanism weight

(bracket not included)

1030

kg

1200kg

With stand 1600kg

Without stand

1330kg**

With stand 2410kg*

Without stand

1910kg**

2700kg

Installation method

On the ground

Control gear / Power supply

R-30iB Plus(AB-cabinet)/15KVA

R-30/B/R-30iBPlus(A、B-cabinet)/15kVA

Main duty

palletizing, handling

Warehouse Automation System Solutions

With the rapid development of the enterprise, the variety of products, and the accelerated turnover of material storage, the logistics and storage space of the enterprise is beginning to be tight. Therefore, various material storage projects have become an inevitable measure for enterprises to improve efficiency and core competitiveness. PGSL merged into the airport logistics sector of CIMC Group through reverse acquisition, integrated CIMC Group’s warehousing project resources and products, and provided customers with a package of logistics and warehousing solutions.

Home Industry

-Overcoming the difficulties of automatic sorting in the home industry, realizing automatic sorting and direct loading.

-Realizing the fully automatic connection between the 5 workshops and automated warehouses.

-Realizing the off-site loading of products with various specifications, such as sofas, mattresses, and panel furniture.

-WMS: Customized the link management between multiple warehouses and locations (five logistics centers and 35 subsidiary warehouses).



 Foxconn

This project consists of 6 subsystems: AS/RS Unit-load warehouse racking system, Mini-load warehouse racking system, electronic label seeding racking system, conveying system, electrical control system ECS, and dispatching system WCS. According to customer requirements, a number of customized software systems have been developed to meet the high standards of the electronics industry.
